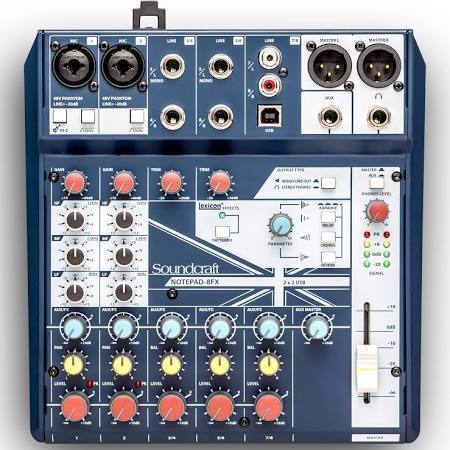

Soundcraft Notepad-8FX
Soundcraft Notepad-8FX
Couldn't load pickup availability
Compact Mixer with Lexicon Effects
From personal mixing to podcasting, Soundcraft's Notepad-8FX delivers the quality and convenience you need in a compact and pocketbook-friendly fashion. With the inclusion of USB connectivity, the Notepad-8FX lets you easily bring the sound Sweetwater expects from Soundcraft to the live stage and the home studio. The Notepad-8FX includes two of Soundcraft's acclaimed microphone preamplifiers, which offer clear sound and tons of headroom — exactly what you need for voice-over work and other applications where your voice is the center of attention. It also includes a direct input, which lets you plug in your bass or guitar. Top it off with a 2-band EQ plus two stereo channels for your line-level gear, and the Notepad-8FX is everything you could want in a mixer that's small enough to go anywhere.
Tech Specs
| Type | Analog Mixer with USB interface |
|---|---|
| Channels | 8 x 2 |
| Inputs - Mic Preamps | 2 x XLR-1/4" combo (mic/line, 1 x Hi-Z) |
| Phantom Power | Yes |
| Inputs - Line | 4 x 1/4" (2 x stereo), 2 x RCA |
| Outputs - Main | 2 x XLR (master) |
| Headphones | 1 x 1/4" |
| EQ Bands | 3-band EQ |
| Effects | Lexicon Delay, Chorus, Reverb |
| Aux Sends | 1 x 1/4" (Aux/FX) |
| Faders | 1 x master fader |
| USB | 1 x Type B |
| Computer Connectivity | USB (2 x 2) |
| OS Requirements - Mac | OS X 10.10 or later |
| OS Requirements - PC | Windows 7 SP1 or later (with Soundcraft driver) |
| Power Source | External power supply |
| Height | 3.5" |
| Width | 10.7" |
| Depth | 11.9" |
| Weight | 3.6 lbs. |
Soundcraft Notepad-8FX Compact Mixer Features:
- A compact 8-channel mixer that's great for mixing onstage or recording in your home studio
- Includes 2 microphone preamplifiers with phantom power, 100Hz highpass filters, and 3-band EQs
- Channel 1 includes a hi-Z instrument-level input for running guitar or bass direct
- Line-level inputs on 3 additional channels accommodate keyboards, playback devices, and consumer music gear
- Onboard Lexicon digital effects include delay, chorus, and reverb
- Tap tempo and a parameter adjustment knob let you dial in each effect to your material
- USB provides 2-in/2-out connectivity for recording and audio streaming
- Outputs include flexible monitoring options and balanced XLR main outs
